Accord 25 fx

CNC machining centre providing utmost performance with minimum investment.
Designed to meet the needs of small and medium-sized companies, it combines state of the art technology with extreme ease of use for flexible productions of doors, windows, stairs, solid wood parts and for panels machining.

Advantages

HEAVY DUTY PROFILING

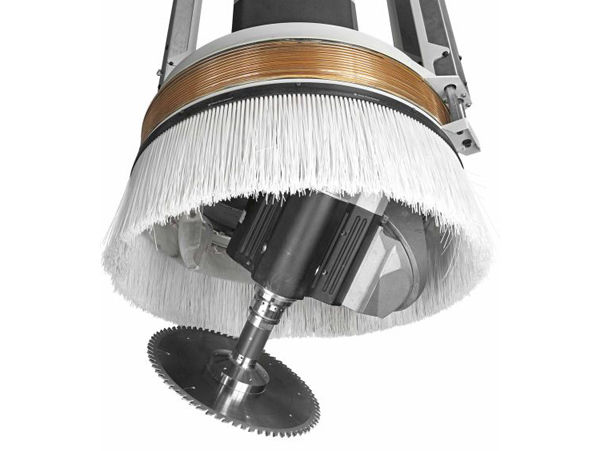

The PRISMA machining heads with 5 interpolating axes are designed for the processing of solid wood.
The ideal solution for windows, doors and stairs.

¡

RAPID AND PRECISE SET-UP

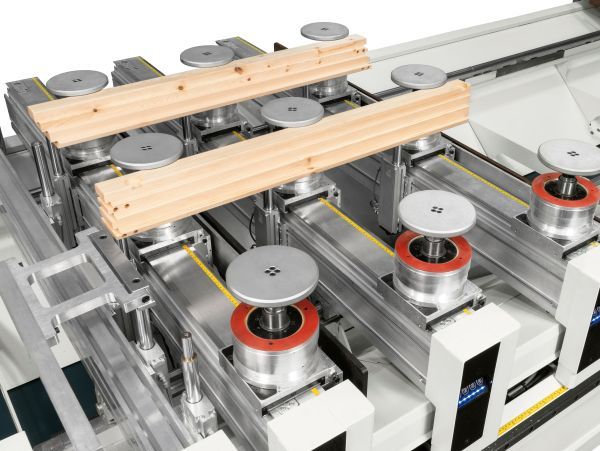

The MATIC bars worktable with direct transmission system and independent drive units, assures the complete set-up in seconds.
Simple and quick replacement of clamps and suction cups through the exclusive rapid locking device.

PERFECT FINISH QUALITY

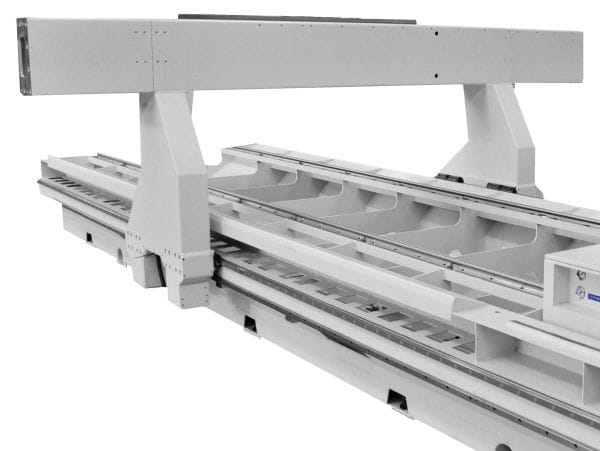

The architecture with fixed table and mobile gantry structure, consisting of a sturdy construction equipped with front and rear sliding guides, ensures maximum accuracy and finish quality over the entire work area.

INTELLIGENT PROGRAMMING
Simple and intuitive programming, thanks to the MAESTRO software that includes modules for different applications.

Technical data

accord 25 fx
Working areas
X-Y-Z axes dimensions mm 3680x1380x250
5020x1380x250
6360x1380x250
3680x1680x250
5020x1680x250
6360x1680x250
Axes
X-Y-Z axes max. speed m/min 60-60-30
Machining head
5 axes electrospindle motor power (max.) kW 12
3/4 axes electrospindle motor power (max.) kW 15
5 axes electrospindle rotation speed (max.) rpm 24000
3/4 axes electrospindle rotation speed (max.) rpm 24000
Tool stores
Tool store on machining head positions 12
Rear tool store positions 32
Side tool store positions 12
Drilling unit
Vertical and horizontal spindles (max.) n. 30
Rotation speed (max.) rpm 8000
