Accord 50 fx

5-axis CNC machining centre with mobile gantry structure, designed for manufacturing complex-shaped and large-sized objects.
It meets the needs of many sectors, from design elements in wood to special applications.

Advantages

HEAVY DUTY PROFILING
The PRISMA machining heads with 5 interpolating axes are designed for the processing of solid wood.
The ideal solution for windows, doors and stairs.

LARGE MACHINING VOLUME

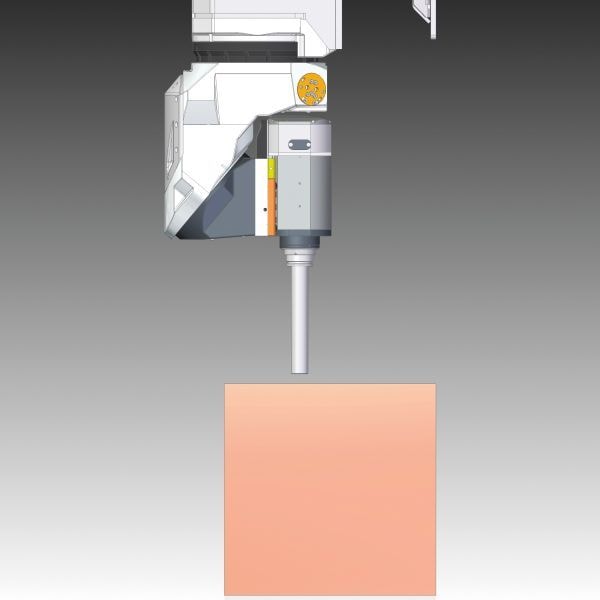

The architecture of the machine is designed to perform routing and drilling of work pieces up to 500 mm in height.

RAPID AND PRECISE SET-UP
The MATIC bars worktable with direct transmission system and independent drive units, assures the complete set-up in seconds.
Simple and quick replacement of clamps and suction cups through the exclusive rapid locking device.

INTELLIGENT PROGRAMMING
Simple and intuitive programming, thanks to the MAESTRO software that includes modules for different applications.

Technical data

accord 50 fx
Working areas
X-Y-Z axes dimensions mm 3680x1680x500
5020x1680x500
6360x1680x500
3680x1905x500
5020x1905x500
6360x1905x500
Axes
X-Y-Z axes max. speed m/min 95-80-30
Machining head
5 axes electrospindle motor power (max.) kW 17
5 axes electrospindle rotation speed (max.) rpm 24000
Tool stores
Tool store on machining head positions 12
Rear tool store positions 48
Side tool store positions 12
Drilling unit
Vertical and horizontal spindles (max.) n. 26
Rotation speed (max.) rpm 8000
