Morbidelli m100/200

This highly modular machining centre provides answers to all the problems associated with woodworking.
Just a few clicks to design and manufacture pieces of any shape, the machine is run by the Suite Maestro which has specific modules for every production cycle.
Unique on the market in having an unrivalled price-performance ratio, it can be configured according to the customer’s needs and investment plan.

Advantages

FREEDOM AT 360°:
ALL FREEDOM

Optimizing the space within your factory thanks to the Pro-Space solution.
Maximum ergonomic load, the absence of perimetral protections allows the access to the work table from all sides of the machine.

SUPERIOR QUALITY:
ALL TOP QUALITY

Unmatched finishing thanks to the JQX (Just Quality eXtreme)

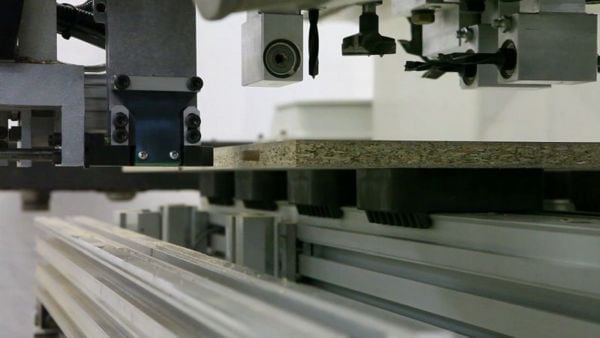

5-axis direct-driven spindle head which ensures the total absence of vibrations even with huge material removal at high speed and with the high-performance drilling heads with RO.AX (Rotoaxial spindle technology) spindles and rotation speed up to 8000 rpm.

FASTER THAN ANYONE ELSE:
ALL FASTER

60% time saving in drilling cycles thanks to the rapid machining/cycle time and devices that reduce the idle times. No downtimes for set-up operations with the TV FLEXMATIC work table and less than 15” for the tool change with the FAST14 tool changer.

ENDLESS MACHINING TYPES:
ALL FLEXIBLE

The machine can cope with every type of wood elements: panels, single elements, kitchen doors, windows, the configured solution for all your needs and your investment plan.
The unit can accommodate up to four machining units, including a device for inserting dowels using pearl glue.

Technical data

m100 m200
Working areas
X-Y axes dimensions mm 3110×1320
3710×1320
5510×1320
3110×1620
3710×1620
5510×1620
3110×1620
3710×1620
5510×1620
Axes
Vectorial speed X-Y axes m/min 56 (ProSpace)
78 (ProSpeed)
56 (ProSpace)
78 (ProSpeed)
Z axis panel passage mm 180 250
Routing unit
Motor power (max.) kW (hp) 15 (20,5) 15 (20,5)
Rotation speed (max.) rpm 24000 24000
Available tools on tool changer (max.) places 44 60
Drilling unit
Independent vertical spindles (max.) n. 21 21
Independent horizontal spindles (max.) n. 12 12
Rotation speed (max.) rpm 8000 8000
Integrated blade in X, diameter mm 125 125
0-90° blade unit
Motor power (max.) kW (hp) 2,2 (3) 2,2 (3)
Rotation speed (max.) rpm 6000 6000
Auxiliary routing unit
Motor power (max.) kW (hp) 4,5 (6) 4,5 (6)
Rotation speed (max.) rpm 18000 18000
