Morbidelli m220

The machining centre with double drilling head reduces drilling cycles by 70%, compared to other machining centres on the market.
Just few clicks to design and manufacture pieces of any shape, the machine is run by Maestro cnc software which has specific modules for every production cycle.

Advantages

70% FASTER ON DRILLING CYCLES: TOP QUALITY

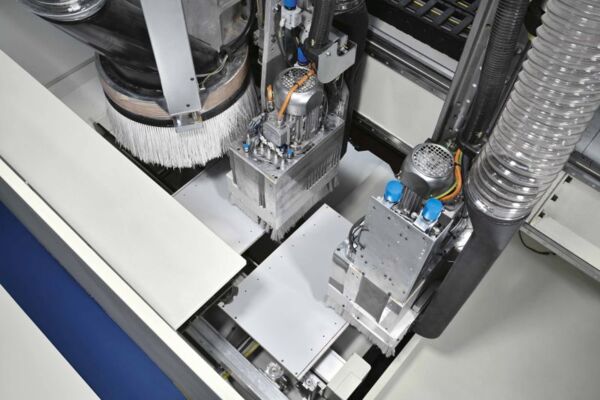

Double drilling heads with independent Y-axis studied for simultaneous machining on an single panel or on 2 different panels.

FREEDOM AT 360°:
ALL FREEDOM

Optimizing the space within your factory thanks to the Pro-Space solution.
Maximum ergonomic load, the absence of perimetral protections allows the access to the work table from all sides of the machine.

TOTAL CUSTOMIZATION:
ALL FLEXIBLE

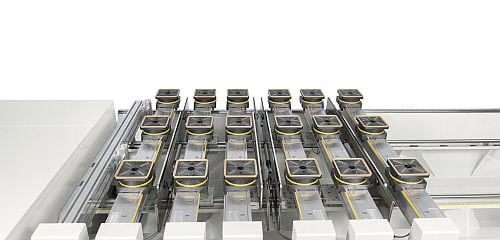

The TV FLEXMATIC automatic work table allows the management of a variable number of pods on the bar, according to the dimensions and shape of the work piece to be machined, in order to always have the best holding without risks of collision.

WORK SIMPLE. WORK DIGITAL: MAESTRO CONNECT
morbidelli m220 is integrated with Maestro connect, the highly innovative «IoT» (Internet of Things) tools platform, enabling to collect, monitor and analyze the data of the machine, improving the services available to the customer. The software Maestro cnc offers the easiest programming system to program in a fast and intuitive way.

Technical data

Working areas
X-Y axes dimensions mm 3110×1620
3710×1620
5510×1620
Axes
Vectorial speed m/min 56 (Pro-Space)
78 (Pro-Speed)
Z axis panel passage mm 180
Routing unit
Motor power (max.) kW (hp) 15 (20,5)
Rotation speed rpm 24000
Available tools on tool changer (max.) places 60
Drilling unit
Independent vertical spindles (max.) n. 34
Independent horizontal spindles (max.) n. 22
Rotation speed (max.) rpm 8000
Integrated blades in X n. 2
0-90° blade unit
Motor power (max.) kW (hp) 2,2 (3)
Rotation speed (max.) rpm 6000
Auxiliary routing unit
Motor power (max.) kW (hp) 4,5 (6)
Rotation speed (max.) rpm 18000
